Stratux

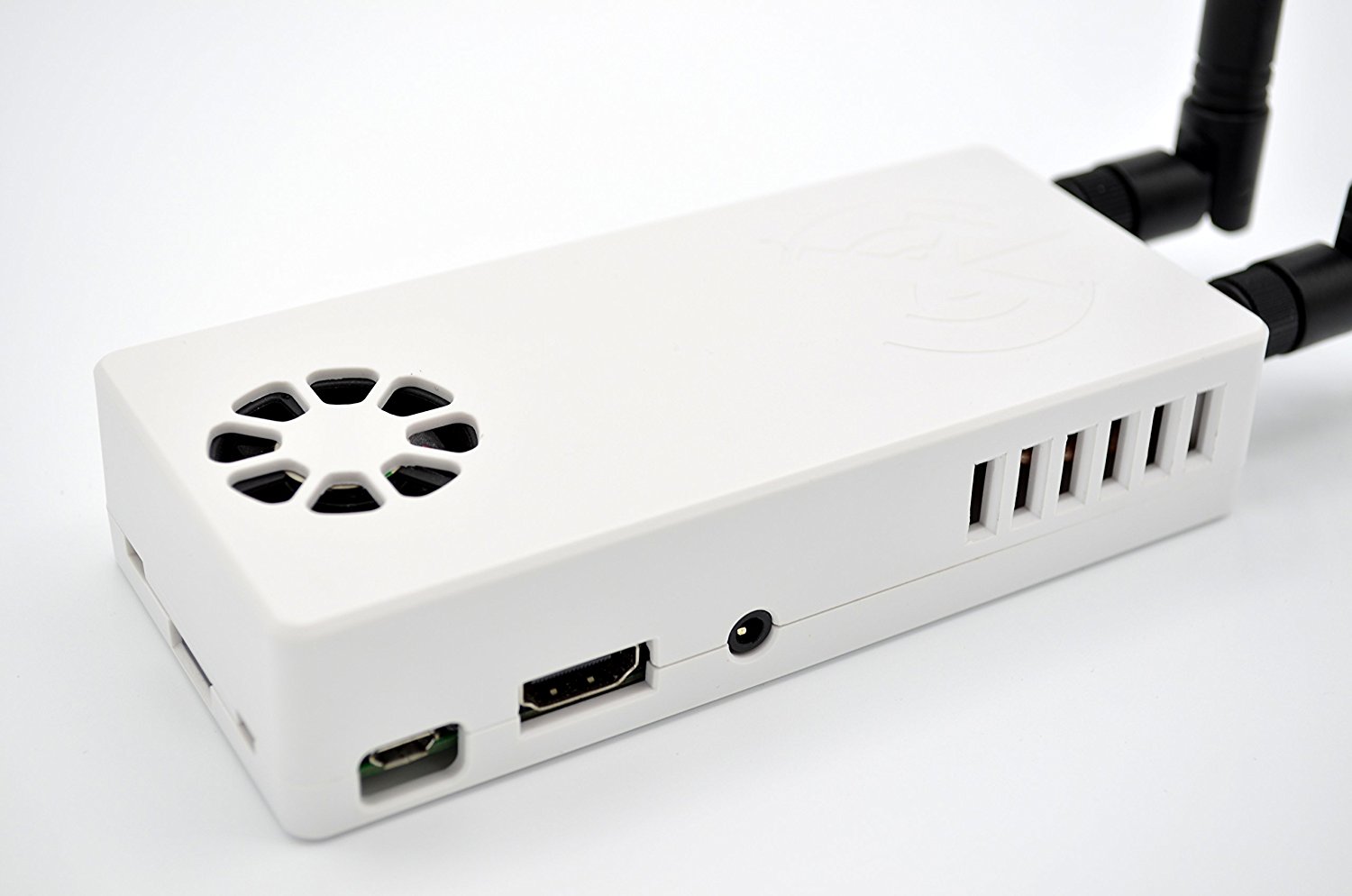

Hello! Stratux is a homebuilt ADS-B In receiver for pilots. It's easy to assemble from inexpensive, off-the-shelf hardware, and probably already works with your electronic flight bag (EFB) of choice. Even better, if you're so inclined, the software is open-source and hackable so you can build the system that's right for you.

To get started, order the parts from the shopping list below, plug everything in, and load up the software.

Dual Band (most common) Shopping List [~$145.95]

  1. Raspberry Pi 3 Motherboard
  2. Pre-programmed SD card with Stratux software
  3. Stratux 1090ES & UAT Radio
  4. High Gain Tuned Antennas
  5. Stratux Case with Fan, Clear Acrylic
  6. Pass-through charging battery pack with cable
  7. GPS (optional): Vk-162 (remote mount, better signal)

Single Band (cheapest) Shopping List [~$94.98]

  1. Raspberry Pi kit (preloaded with Stratux)
  2. Pass-through charging battery pack with cable
  3. GPS (optional): Vk-162 (remote mount, better signal)

Quickbuild (easiest) Shopping List [$220-260]

  1. Buy here
  2. Pass-through charging battery pack with cable

Loading the Software (to upgrade firmware)

  1. Download the .zip file, latest linked above.
  2. Unzip the file. Look for the ".img" file.
  3. If using Windows, follow instructions for Win32DiskImager.
  4. If using Mac, download and follow prompts for Pi Filler.

Assembly

  1. Stick heat sinks onto Raspberry Pi components and snap together case as specified in the Vilros information booklet.
  2. Insert radio (RTL-SDR) dongle into a USB port.
  3. Insert (and secure) the Micro SD card.
  4. Power up and connect to the "stratux" WiFi network.
  5. From a device on the "stratux" network, visit http://192.168.10.1 in Chrome. This will let you configure settings and verify that the software is running properly on the Raspberry Pi.
  6. Open your EFB and verify ADS-B receiver connection.

Current Project Status

Feature Status
ADS-B In
‣ Weather (978 FIS-B)
‣ Traffic (978 TIS-B)
‣ Traffic (1090ES)
GPS support
‣ Ublox
‣ SIRF
Serial output (for EFIS connections) 🚧 in development
AHRS / Synthetic Vision 🚧 in development
Anything else ❌ unsupported

Stratux is currently compatible with many EFB applications. Some of them offer official support, while others simply display data from generic devices, including Stratux. If you don't see your EFB of choice on the list, contact them (and consider filing an issue on GitHub).

EFB platform support Status Details
FlyQ EFB (Seattle Avionics) 2.1+ (iOS) All currently-supported features tested.
Naviator (Android) All currently-supported features tested.
AvNav 2.0.0+ (Android) All currently-supported features tested.
ForeFlight 7.x (iOS) All currently-supported features tested.
WingX (iOS only) All currently-supported features tested.
Avare EFB (Android) All currently-supported features tested.
FltPlan Go (Android) All currently-supported features tested.
DroidEFB All currently-supported features tested.
AerovieReports All currently-supported features tested.
AvPlan EFB All currently-supported features tested.
iFly GPS 9.4+ All currently-supported features tested.
DroidEFB 2.1.1 All currently-supported features tested.

Further Information

EAA writeup on Stratux assembly.

Aviation Safety Magazine Article.

Aviation Consumer Magazine Article.

http://slack.stratux.me - stratux Slack "chat". Ask for help or suggest/contribute improvements.

http://www.reddit.com/r/stratux - stratux community. Ask for help or suggest/contribute improvements.

http://www.github.com/cyoung/stratux - latest developments.

http://www.thingiverse.com/groups/stratux/things - 3D printable cases.

AerovieReports - Update Stratux firmware seamlessly on iOS. demo here
